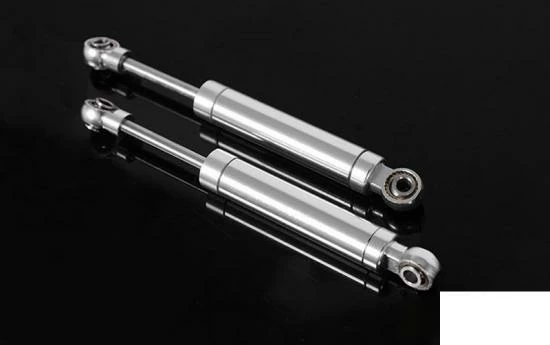

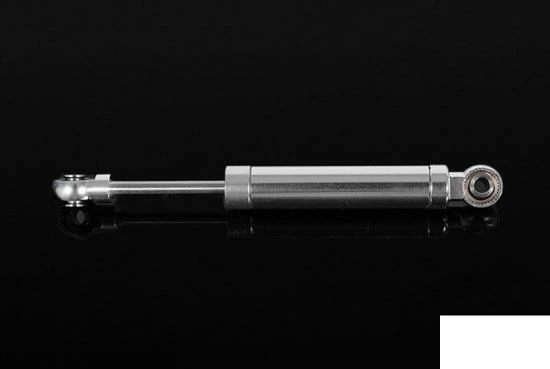

RC4WD The Ultimate Scale Shocks 90mm (Silver)

2x The Ultimate Scale Shocks 90mm (Silver)
At 9mm OD, this is the most Scale and precision made Suspension Shocks Available on the market. Along with our next gen fine tuned super soft internal Springs.
Specifications:

• CNC Machined
• Billet Aluminum
• Heat Treated

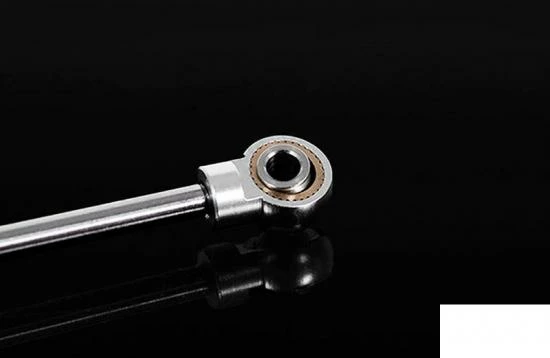

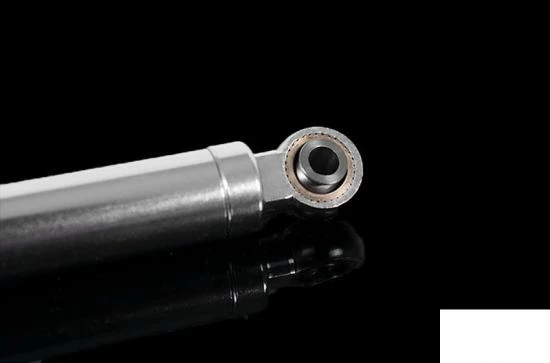

• Ball Width: 0.25in / 6.45mm
• Ball Lip OD: 0.19in / 4.8mm
• Ball Inner OD: 0.12in / 3.1mm
• Hole to Hole (Compressed): 2.68in / 68mm
• Hole to Hole (Uncompressed): 3.66in / 90mm
• Overall Length: 3.94in / 100mm
• Travel Length: 0.94in / 24mm
• Shock Body OD: 0.35in / 8.8mm
• Shaft OD: 0.12in / 3mm
• Each Weight: 0.40oz / 11g

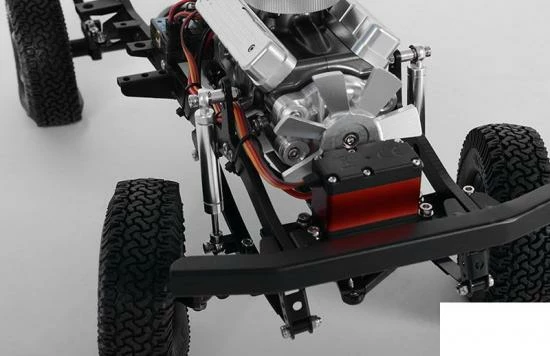

Shown installed on Fracture Scale RTR Truck with V8 Engine for example (Not Included)

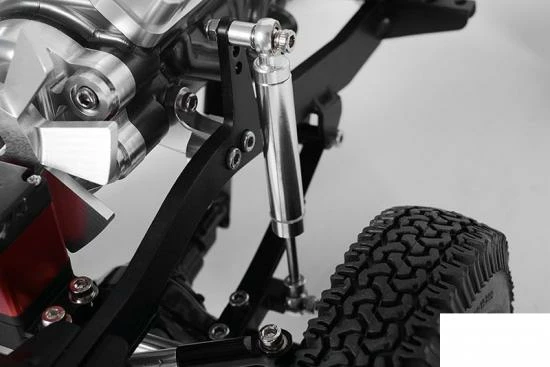

Shown installed on Traxxas TRX4 with 2mm Black Spacer with M3 Hole (10) (Z-S0600) and 3mm Black Spacer with M3 Hole (10) (Z-S0806) for example (Not Included)

What’s Included:

• 2x RC4WD Ultimate Scale Shocks Absorbers (90mm)

Replacement Parts:

• 90mm Ultimate Scale Shocks Internal Spring Assortment (Z-S1349)

Notes:

• Fits Gmade Sawback
• For complete you need 2 set of this product
• These shocks do not use oil. Use a small amount to keep the shaft lubricated only.
• These shocks have very small threads on the shock cap. You can easily install the cap wrong and cause the threads to strip. Please pay careful attention when removing and installing the shock cap.
• Fits RC4WD Timberwolf Scale Crawler Kit (Bolted Chrome) (Z-K0016 “Disc”) (Front / Rear)
• Fits Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 “Disc”) (Rear)
• Fits RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
• Fits Traxxas TRX-4, but will require both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 Holes
• Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
