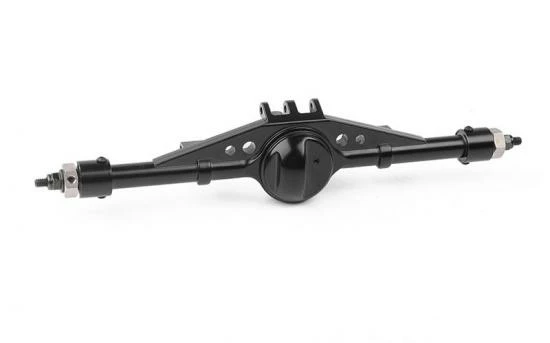

RC4WD TEQ Ultimate Scale Cast Axle (Rear) RC4WD

TEQ Ultimate Scale Cast Axle (Rear)
With improved steering and durability, the TEQ Ultimate Scale Axles are a modern version of the Yota II axles designed as an upgrade for Axial SCX10 II and Element Enduro line of RC trucks. These scale axles are cast from a high grade aluminum alloy and come with integrated suspension link mounts that construct a single, hardened unit. Solid and maneuverable, this set features universal style XVD shafts that deliver a tighter turning radius and high strength driveline. Bringing the Axial SCX10 II and Element Enduro RC trucks upgraded soundness, the ring and pinion gears are a CNC machined, hypoid tooth design and are linked to a 6 bolt hardened steel locker. The C-hubs feature interlocking grooves on the front axle which enables caster customization and the front pumpkin is offset providing more ground clearance. All of this is packed into a high strength cast aluminum case with a long lasting powder-coated finish.
Specifications:

• Cast Light Weight Aluminum Housing
• Hardened Steel Ring and Pinion Gears
• 5mm Axle Output Shaft
• Full Ball Bearings
• Powder-coated in Black
• Width: 189.6mm / 7.46in
• Gear Ratio: 8T/30T
• 12mm Steel Wheel Hex
• Weight: 4.97oz / 141g

Shown installed on Axial SCX10 II for example (Not Included)
What’s Included:

• 1x TEQ Ultimate Scale Cast Axle (Rear)

Other TEQ Axles:

• TEQ Ultimate Scale Cast Axle (Front) (Z-A0127)

Replacement Hardware:

• M4 Flanged Lock Nut (Black) (Z-S0620)
• M2 X 3mm Set Screws
• Steel Socket Head Cap Screws M2 x 5mm
• Steel Socket Head Cap Screws M2 x 10mm (Z-S0849)
• Steel Button Head Cap Screws M2 x 4mm

Replacement Parts:

• TEQ Ultimate Scale Cast Axle Diff Cover and Third Member (Z-S1980)
• TEQ Ultimate Scale Cast Axle Housing (Rear) (Z-S1979)
• TEQ Ultimate Scale Cast Axle Straight Axle Shafts (Rear) (Z-S1981)
• TEQ Ultimate Scale Cast Axle Ring and Pinion Gears W/ Locker (Z-G0076)
• TEQ Ultimate Scale Cast Axle Service Kit (Rear) (Z-S2171)

Notes:

• Fits Axial SCX10 II
• Fits Associated Element Enduro
• Please do routine maintenance.
• Check the grease around the gears and also oil the bearings.
• Do not over tighten screws as you can strip the holes.
• Use Locktite but do not use too much or you can damage the casing.
