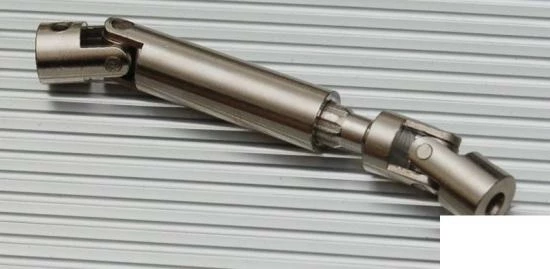

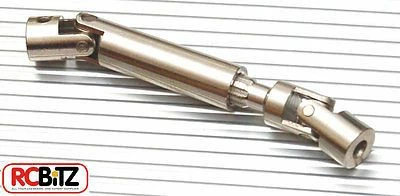

RC4WD Punisher Shaft II (90-120mm – 3.54 -4.72 ) 5mm F-350 Hi-Lift

RC4WD Steel Punisher Shaft II (1)

Now in second generation design! Works with TLT-1, Juggernaut , F-350 Hi-Lift Hilux or R2 transmission.

Specifications:

• Advanced internal spline
• Industrial grade stainless Steel
• Extremely durable huge 12.5mm mainshaft diameter
• Shaft Travel: compact 90mm, fully extended 120mm (20mm total travel)
• Made to fit 5mm output Shaft
• Uni-Joint for super smooth operation
• Engineered and manufactured by RC4WD USA
• Direct fit, no modification needed

How to measure which shaft is for your project:

• Measure the diameter of your output shafts on the tranny and input shafts on the axles to see if they are 5 or 6mm
• Measure from output shaft to input shaft to get the correct measurement of your total length needed

What’s included:

• 1x RC4WD Punisher Shaft II

Notes:

• Fits 1/10 RC4WD Trail Stomper Truck RTR
• Please make sure to use a medium threadlock on the set screws.
• This product will fit the  (Front/Rear) Gmade Sawback , but you will need 4x M4 x 3mm SSS (Z-S1104)

To find out which Punisher Shaft fit which truck, click here to see a comparison chart.

Click here for instructions on How to Measure for Proper Driveshaft Length and Compatibility.
