RC4WD Punisher Shaft II 150mm 192mm 5.90 – 7.55 5mm Hole TLT-1 Jugger RC4WD

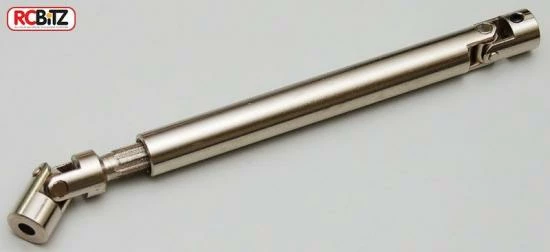

RC4WD Steel Punisher Shaft II (1)

Now in second generation design! Works with TLT-1, Juggernaut or R2 transmission.

Specifications:

• Advanced internal spline
• Industrial grade stainless Steel
• Extremely durable huge 12.5mm mainshaft diameter
• Shaft Travel: compact 150mm, fully extended 192mm (42mm total travel)
• Made to fit 5mm output Shaft
• Uni-Joint for super smooth operation
• Engineered and manufactured by RC4WD USA
• Direct fit, no modification needed

How to measure which shaft is for your project:

• Measure the diameter of your output shafts on the tranny and input shafts on the axles to see if they are 5 or 6mm
• Measure from output shaft to input shaft to get the correct measurement of your total length needed

What’s Included:

• 1x RC4WD Punisher Shaft II

Notes:

• Please make sure to use a medium threadlock on the set screws.

To find out which Punisher Shaft fit which truck, click here to see a comparison chart.

Click here for instructions on How to Measure for Proper Driveshaft Length and Compatibility.
