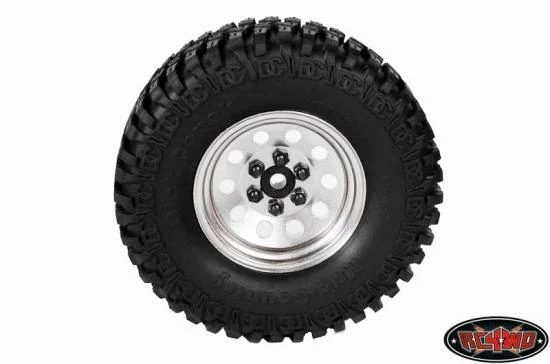

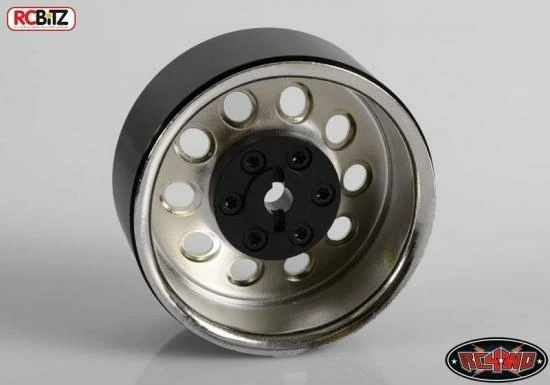

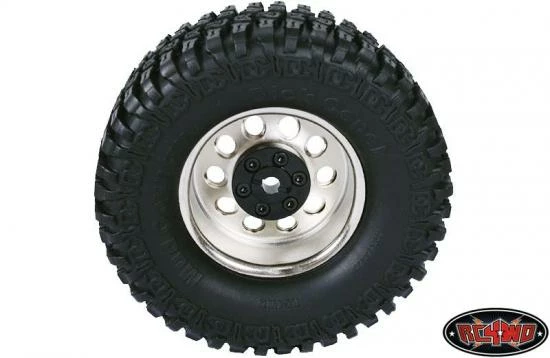

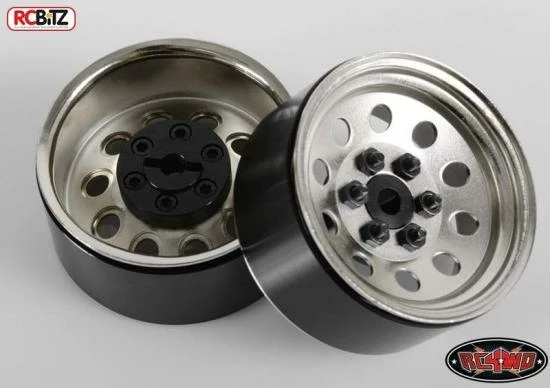

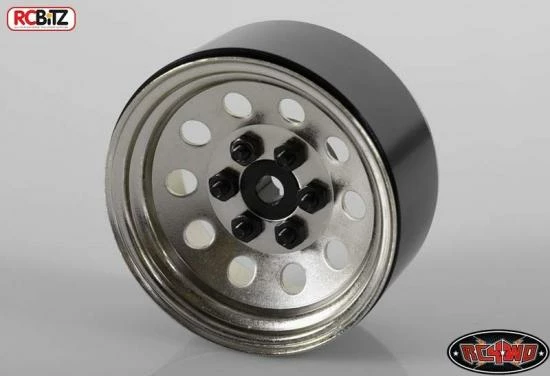

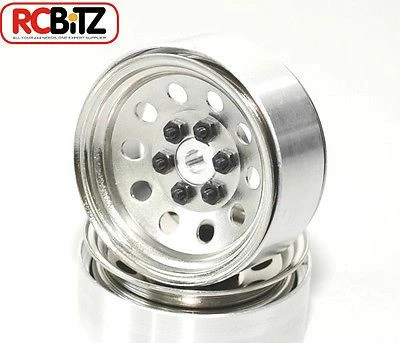

4x Pro10 1.9″ Steel Stamped Beadlock Wheel (Silver)

Ever since the first stamped beadlock wheel made in 1999, Pro10 is our next gen of the stamped series beadlock wheels. Extremely scale, affordable and functional.

Specifications:

• Engineered by RC4WD Team UK
• Removable Center Hub
• Internal beadlock system
• Wheel Width: 25mm / 0.98inch
• Pin Mount (fit any 1.9 Axle)
• OD: 48.26mm
• Fit 1.9″ Size Tires
• Backspacing 7.86mm / 0.309 inches
• Negative Offset 7.8mm / 0.3 inches
• Each Wheel Weight: 71g / 2.50oz

What’s Included:

• 4x RC4WD Pro10 Steel 1.9″ stamped Beadlock Wheel (Silver Edition)
• 2x M2.5 x 14mm SHCS (Black) (Z-S1213)

Replacement Hardware:

• 24x M2.5 x 8mm SHCS (Black) (Z-S0829)
• 24x M2.5 Nuts (Black) (Z-S0303)

Optional Parts:

• 1.9 Proline Tire Compatible Internal Beadlock Rings (Z-S0846)

Optional Offset Hexes

• Billet wheel hub for OEM Stamped 1.9″ Wheels
• This product will fit Optional Wheel Hexes (Z-S0268), (Z-S0530), (Z-S0774), (Z-S0779) and (Z-S0780), but you will need RC4WD 12mm Axle Wheel Hexes (Z-S0239)
• Narrow Stamped Steel Wheel Pin Mount 6-Lug (Z-S1913)

Fit any 1.9 size tires.

Optional Scale Wheel Nut Center:

12mm Hex hub (Part # Z-S0268)
Instructions:

• Wheel assembly

Notes:

• Fits Gmade Sawback
• Due to many different methods to design Tires and Wheels, we have no control over other manufacturers products. So we can only tell you that RC4WD Tires and Wheels work together. In some cases our Wheels and Tires will work with other brand Wheels and Tires, but we can not guarantee the outcome.

Click here to download the RC4WD full wheel comparison list.

Spec

• Brand: RC4WD
• Part No: Z-W0073
• Barcode: 610373639747
• Mounting Diameter: 1.9 Inch
• Fitment: 12mm Hex
• Pack Quantity: 4
