RC4WD Portal Rear Axles For Axial AR44 Axles (SCX10 II) RC4WD

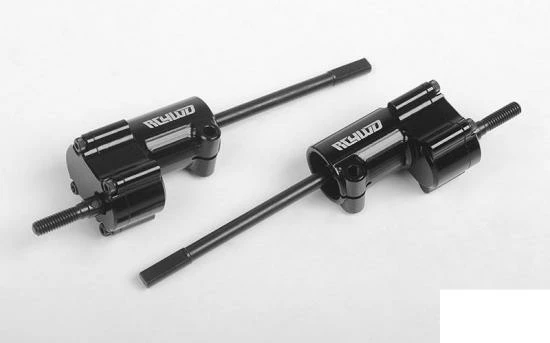

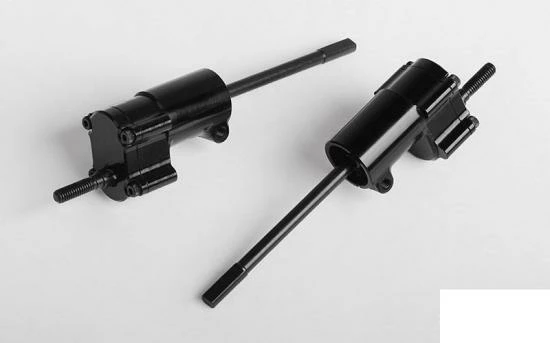

RC4WD Portal Front Axles for Axial Ar44 Axles (SCX10 II)
Specifications:

• Hardened Steel CVD Axles
• CNC aluminum housings
• Total height added is 10.4mm
• 13t 32p hardened steel gears
• 5X9X3mm bearings
• Same steering angle as stock Axial AR44 axles
• Total Weight: 3.44oz / 98.0g

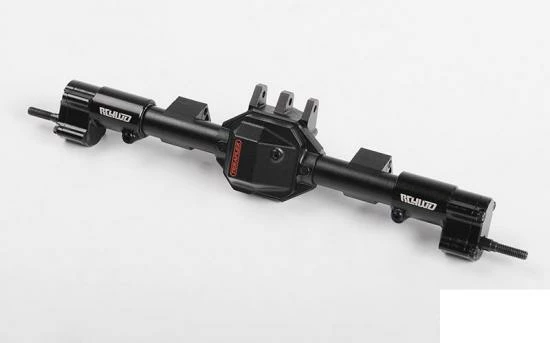

Shown installed with RC4WD Teraflex Aluminum Axle Housing Set for Axial AR44 (SCX10 II) (Z-A0124) for example (Not Included)

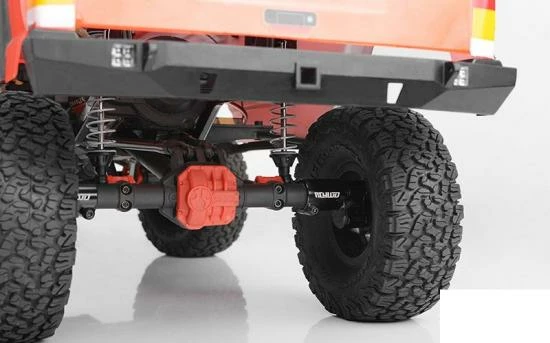

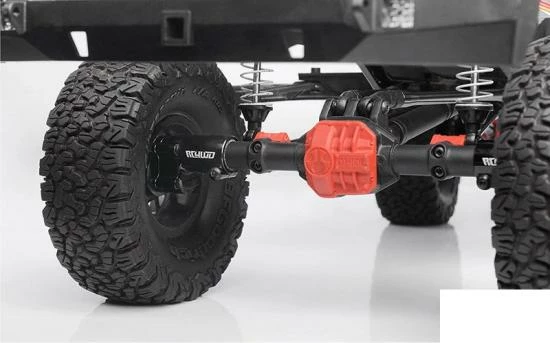

Shown installed on Axial SCX10 II for example (Not Included)

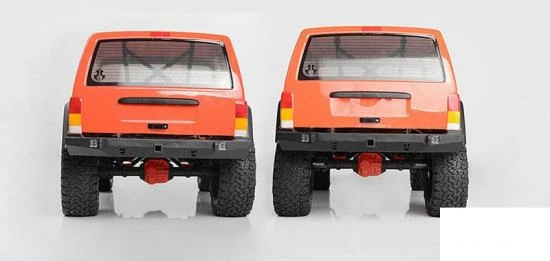

Shown the comparison between the original axles and these new axles which installed on Axial SCX10 II
What’s Included:

• 1x Portal Front Axle for Axial Ar44 Axles (SCX10 II) (Left)
• 1x Portal Front Axle for Axial Ar44 Axles (SCX10 II) (Right)

Replacement Hardware:

• Metal Shield Bearing 5x9x3mm (Z-S0841)
• Steel Socket Head Cap Screws M2 X 6mm (Z-S0611)

Notes:

• Fits Axial SCX10 II
• Maintains stock gear ratio
• For a complete vehicle, you will need RC4WD Portal Rear Axles for Axial AR44 Axles (SCX10 II) (Z-A0132)
