RC4WD M3 Bent Medium Aluminum Rod Ends (Silver) (10) RC4WD ** CLEARANCE **

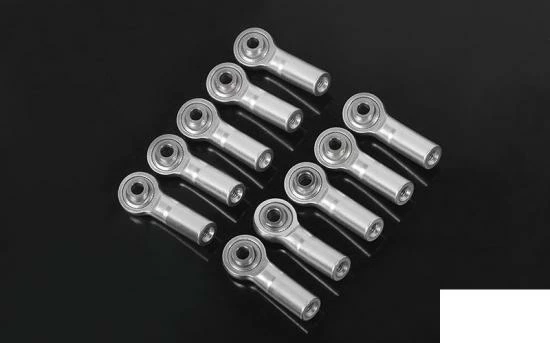

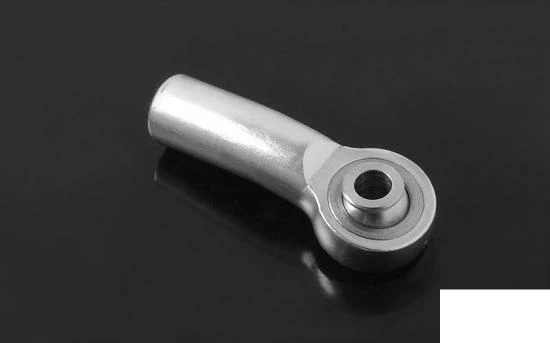

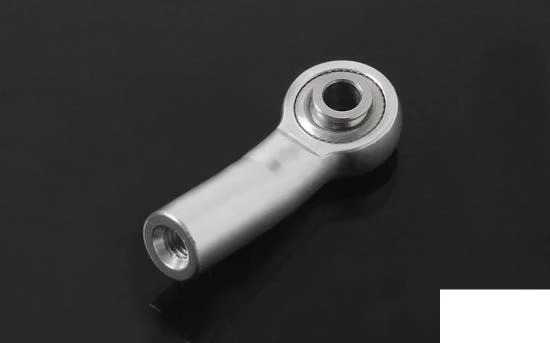

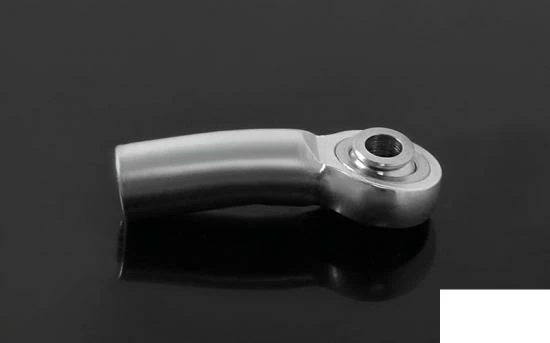

M3 Bent Medium Aluminum Rod Ends (Silver) (10)
Perfect upgrade to replace your plastic rod ends. The aluminum rod ends are a great heavy duty upgrade replacement. Direct replacement to Z-S0074.
Specifications:

• CNC Machined
• Billet Aluminum
• Fits 3mm Threaded Shaft (M3)
• Replaces Plastic Rod End Z-S0074
• Special Protective Silver Coating
• Preinstalled with a Stainless Steel Ball

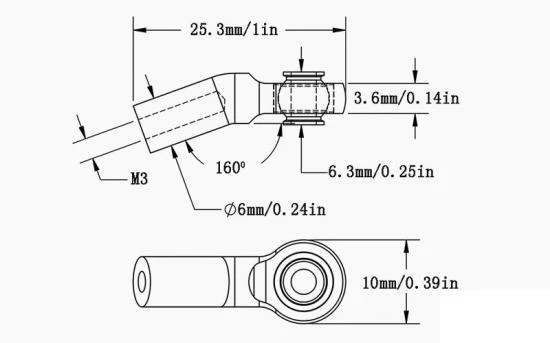

• Total Length: 1in / 25.3mm
• Ball Hole to Rod end Length: 0.78in / 20mm
• Bent Degree: 160_
• Rod OD: 0.23in / 6mm
• Head OD: 0.39in / 10mm
• Ball Width: 0.24in / 6.3mm
• Ball Lip OD: 0.2in / 5mm
• Ball Hole ID: 0.12in / 3mm
• Each Weight: 0.10oz / 3g

What’s Included:

• 10x M3 Bent Medium Aluminum Rod Ends (Silver)

Optional Colors:

• M3 Bent Medium Aluminum Rod Ends (Red) (10) (Z-S1647)
• M3 Bent Medium Aluminum Rod Ends (Blue) (10) (Z-S1649)

Notes:

• Replacement for Plastic Rod End (Z-S0074)

Click here to see our full line of rod end specification comparison list.
