RC4WD Leverage High Clearance Front Axle For Axial SCX10 AX10 RC4WD Jeep

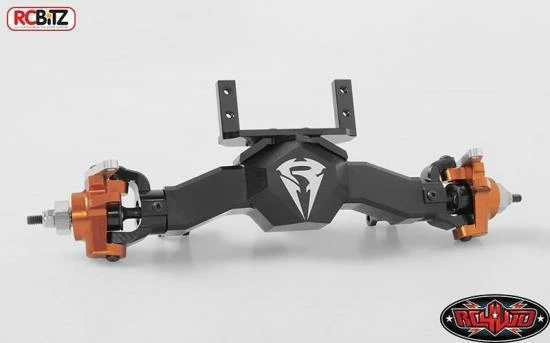

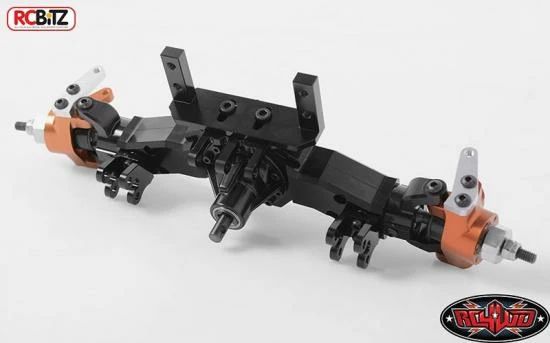

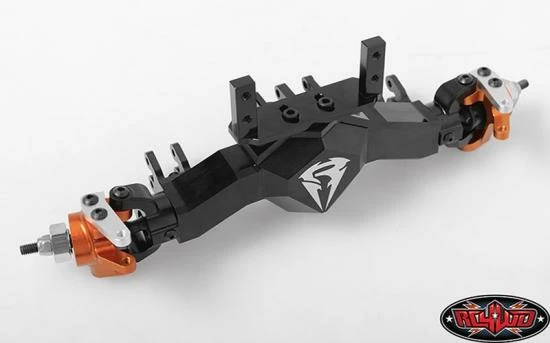

Leverage High Clearance Front Axle for Axial SCX10/AX10
Specifications:

• Billet Aluminum
• CNC Machined
• Anodized Black
• Laser Etch Logo “R”
• Amazing Detail
• Heavy Duty Bevel Gear Set 39T/15T
• Engineered and Manufactured by RC4WD
• 12mm Steel Wheel Hex

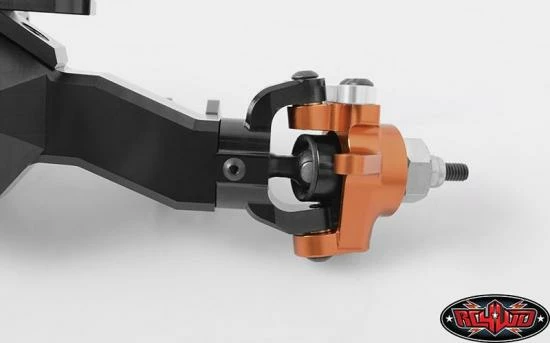

• 4mm Axle Output Shaft
• Weight: 11.21oz / 318g

Shown installed with Axial SCX10 Jeep Rubicon and Leverage High Clearance Axle Links for Axial SCX10/AX10 (Z-A0113) for example (Not Included)
Click image below to enlarge photo.

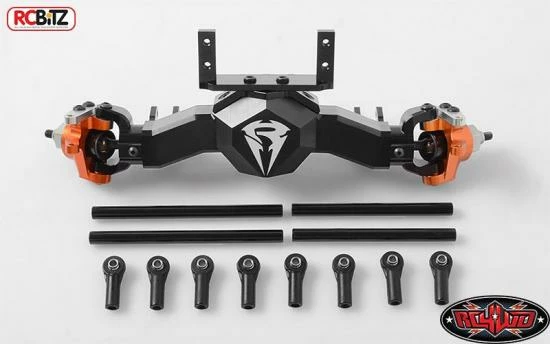

What’s Included:

• 1x Leverage High Clearance Front Axle for Axial SCX10/AX10

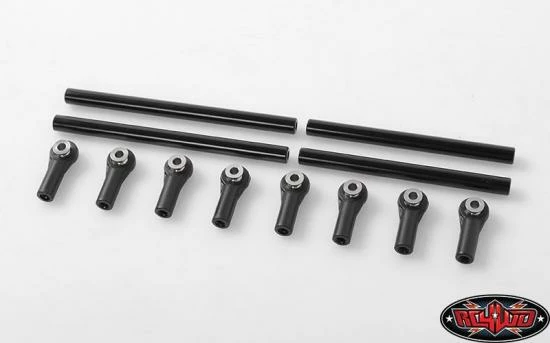

• 2x 71mm Upper Front Links
• 2x 84mm Lower Front Links
• 8x M3 Medium Straight Plastic Rod Ends (Z-S0947)
• 8x M3 x 15mm SSS (Black) (Z-S0650)

Optional Parts:

• Leverage High Clearance Rear Axle for Axial SCX10/AX10 (Z-A0111)
• XVD Axles for Leverage High Clearance Front Axle (Z-S1881)

Required Parts:

• Leverage High Clearance Axle Links for Axial SCX10/AX10 (Z-A0113)

Replacement Parts:

• Replacement Third Member for Cast Yota II Axle (Z-S0813)
• Yota 1/10 Axle Ring & Pinion Gears (Z-S0027)
• M3 Medium Straight Plastic Rod Ends w/ Axial Width Balls (20x) (Z-S0947)

Replacement Hardware:

• 4x M3 x 10mm BHCS (Z-S0653)
• 4x M2.5 x 4mm BHCS (Z-S1787)
• 4x M2.5 x 6mm SHCS (Z-S0855)
• 4x M2.5 x 8mm SHCS (Z-S0829)
• 4x M2.5 x 10mm SHCS (Z-S1290)
• 10x M2 x 6mm SHCS (Z-S0611)
• 2x M3x8 SHCS (Z-S1231)
• 2x M3 x 3mm SSS (Z-S0124)
• 6x Bearing 5x11x4mm (Z-S0683)
• 2x Bearing 5x10x4mm (Z-S0686)
• 2x Bearing 10x15x4mm (Z-S0837)
• 2x Bearing 8x12x3.5mm (Z-S0681)
• 2x M4 Nylock Nut (Sliver) (Z-S1265)
• 3x M4 E-clip (Z-S0919)
• 2x M6 E-clip (Z-S1785)

Notes:

• While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
• Fits Axial SCX10/AX10.
