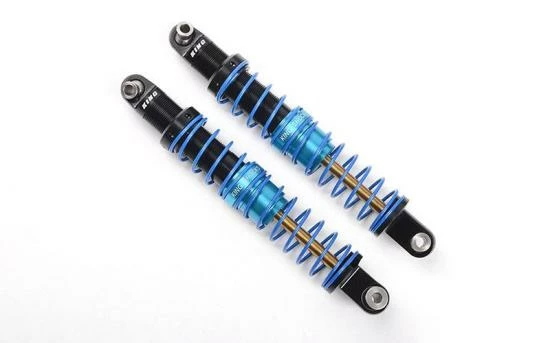

RC4WD King Off-Road Racing Shocks for Traxxas TRX-4 (90mm)     These are the all new Licensed Scale Shocks to hit the market and are officially Licensed from King Off-Road Shocks. These new shocks feature a completely new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!
    Specifications:

• Machined Billet Aluminum

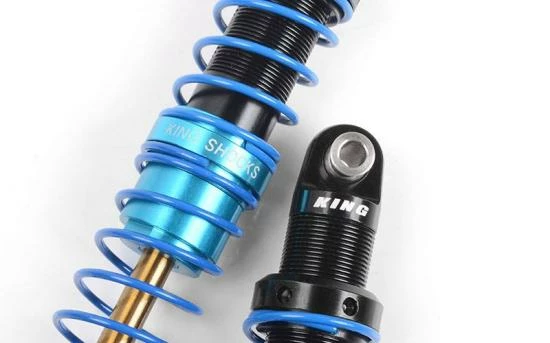

• King Laser etched on top cap and retainer ring
• Dual Spring Design
• X-ring Gaskets

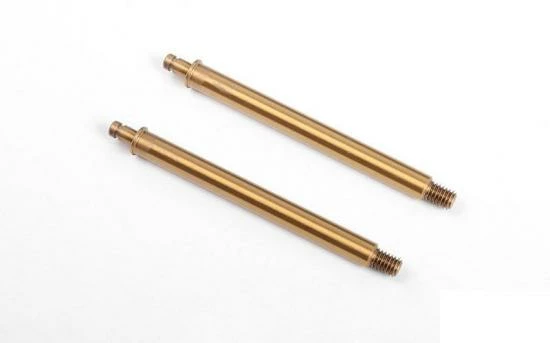

• Titanium Nitride Coated Shock Shafts
• Hole to Hole (Compressed): 2.67in / 68mm
• Hole to Hole (Uncompressed): 3.54in /90mm
• Overall Length: 3.92in / 99.7mm
• Travel Length: 0.86in / 22.0mm
• Shock Body OD: 0.57in / 14.7mm
• Shaft OD: 0.15in / 3.9mm
• Each Weigh: 0.67oz / 19.2g

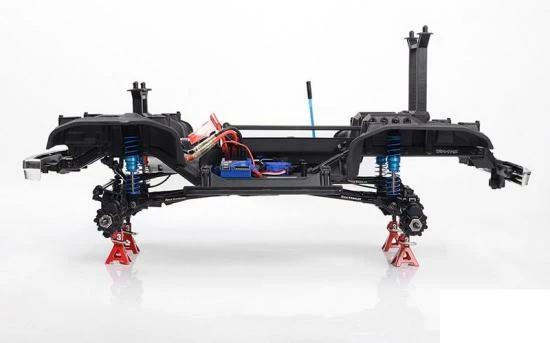

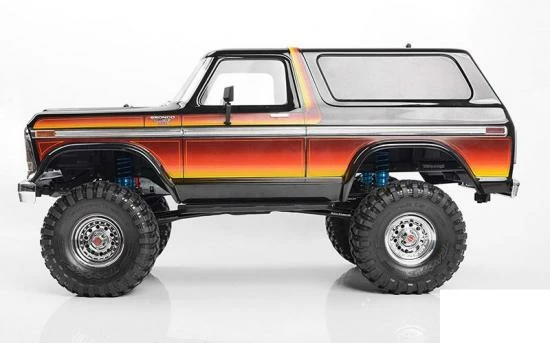

                Shown installed on Traxxas TRX-4 ’79 Bronco Ranger XLT with Chubby Mini 3 TON Scale Jack Stands (Z-S0731) for example (Not included)           What’s Included:

• 2x RC4WD King Off-Road Racing Shocks for Traxxas TRX-4 (90mm)
• 2x 2.5mm X-ring collar
• 1x King Decal Sheet

Instruction Manual:

• Click here to download.

  Notes:

• Designed with Titanium Nitride (TiN) shock shafts for long term wearability.
• X-ring Gaskets provide double the oil seals in the shock cartridge.

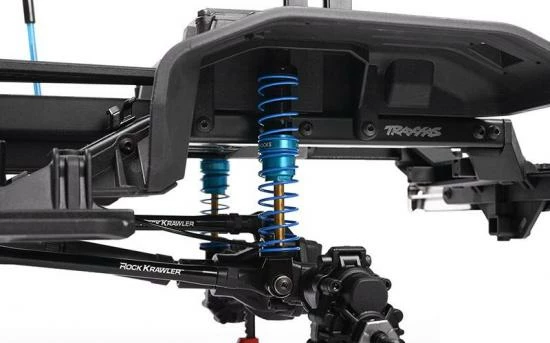

• Ball ends are a direct fit for Traxxas TRX-4 axle and shock hoop mounts.
• Shocks do not come with oil. It is highly recommended to build the shocks with silicone shock oil and thick shock grease on the x-rings for maximum performance.
• Additional X-ring spacers are included to fine tune the shocks. A 2.7mm spacer is installed in the shocks providing maximum sealing compression. The 2.5mm spacer can be used allowing the shaft to move easier through the X-rings.
• Fits Traxxas TRX-4 Land Rover Defender
• Fits Traxxas TRX-4 ’79 Bronco Ranger XLT
• Fits Traxxas TRX-4 Sport Kit
• Fits Traxxas TRX-4 Sport
• Fits Traxxas TRX-4 Crawler Kit
• Fits Traxxas TRX-4 Mercedes-Benz G 500 4×4
• Fits Traxxas TRX-4 Chevrolet K5 Blazer
• Fits Traxxas TRX-6 Mercedes-Benz G 63 6×6

  King Off-Roadis a registered trademark of the King Off-Road Shock company.The King Off-Road logois property ofKing Off-Road Shocks andused under license by RC4WD.



Spec

• Brand: RC4WD
• Part No: Z-D0080
• Barcode: 639302599693
• Fitment: Option Part
