RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set
This is the new licensed RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set. These have been Officially Licensed by Land Rover and are only available from RC4WD and our Dealers.
Experience the versatility and advanced design of the G2 for yourself. Packed full of capability, the G2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.
The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the Yota II Axles.
The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.
The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let’s you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!
Are you ready for your off-road experience?
Custom Designed for True to Scale LooksRealistic Aluminum Ladder Frame ChassisR3 Single Speed TransmissionCenter Mounted Realistic 4×4 Transfer CaseYota II Ultimate Scale Cast Axles3 Link Front and 4 Link Rear Suspension1.9″ Stamped Steel Beadlocks W/Lug NutsSuper Grip Dirt Grabber TiresChassis Mounted Steering servoPlastic Fuel Cell Receiver BoxDual Spring Oil Filled Shock Absorbers
Hammer Transfer CaseRatio: 1.47:1Gears: Wide 0.8 Mod Hardened Steel GearsFeatures: 8 Bearings, Cast Casing, Hardened Gears
R3 Single Speed TransmissionRatios: Pinion/Spur 14/64 = 4.57:1 Internal Ratio: 1.78:1Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Cast Yota II AxlesRatio: 15/40 = 2.67:1Width at Hex: 178.2mm
G2 SuspensionDouble Triangulated 4 Link Rear Suspension3 Link Suspension with Panhard Bar
Shock AbsorbersDual Spring 80mm Shocks: Can be Oil Filled
WheelsType: 1.9” 5 Lug Wagon WheelsHub: Pin TypeWidth: 25mmBack Spacing: 11mm
BumpersMachined Billet Aluminum, Lightweight
G2 Truck DimensionsWheelbase: 275mm (10.8″)Width: 213mm (8.3″)Height: 252mm (9.9″)Ground Clearance: 58mm (2.2″)Final Drive Ratio: 31.9:1 Weight: 5.58Lbs / 2.533Kg
DRIVETRAIN
The R3 single speed transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin spur with slipper clutch. Also features a sturdy billet aluminum motor mount for durability.
The G2 includes the Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and the same heavy duty 0.8 Mod widened gears for durability.
Drawing on the success of the RC4WD MOA gear sets, the G2 drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.
The most scale accurate axles on the market, the RC4WD Cast Yota II axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.
The Driveshafts for the G2 are a design featuring bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.
SUSPENSION
The G2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.
The G2 includes a set of RC4WD Dual Spring Shocks. Designed for ultimate scale looks and ultimate performance. These dual spring shocks are machined from billet aluminum.

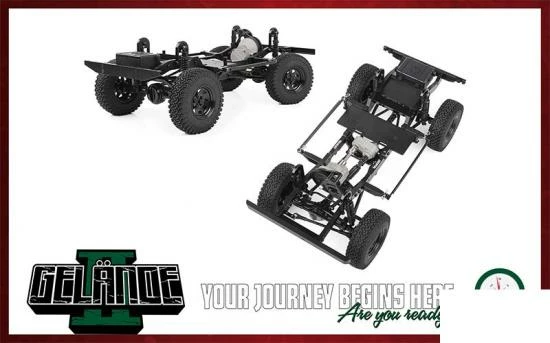

The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.
The G2 includes a set of RC4WD Black Stamped Steel 1.9” internal beadlock wheels. Featuring a super tough black finish, aluminum internal lock- ing ring and popular 5 lug design with separate hub.
Every G2 needs a tough set of rock grabbing tires and the included RC4WD Dirt Grabbers deliver traction as well as the perfect scale looks in just the right size.
DETAILS

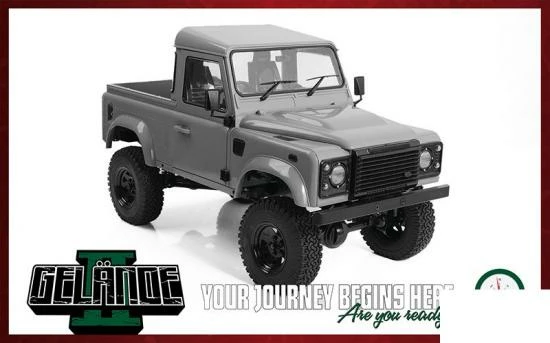

The G2 features the 2015 Land Rover Defender D90 Body Set. The custom 4 door Defender body has an awesome assortment of scale details including mirrors, door handles, vents and grilles to match the 1:1 vehicle.

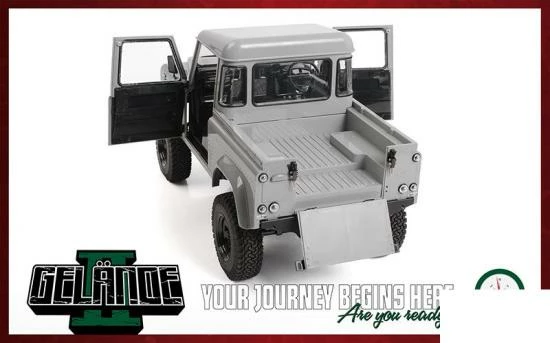

It’s officially licensed with Land Rover with opening side and rear doors and hood, the 2015 Land Rover Defender D90 Body Set is the most scale replica in the market.

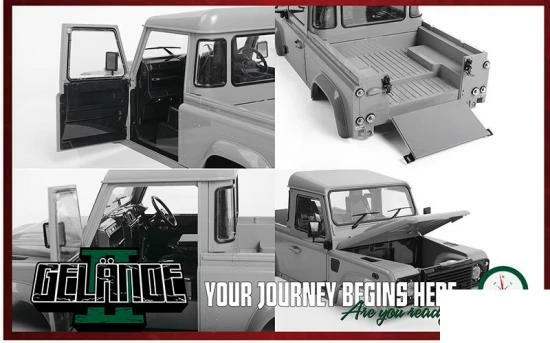

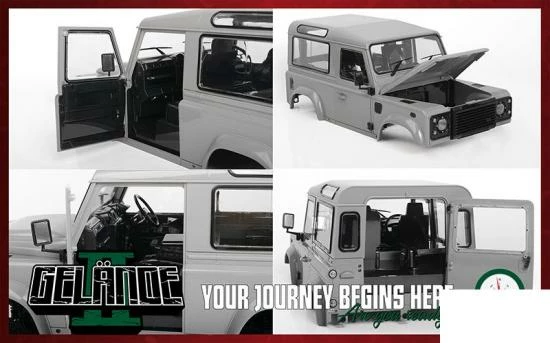

The body features a full detailed interior, seats, opening center console, plastic and rubber mirrors and a detailed dashboard. It’s all here to bring your scale experience to a level.
Comprised of over 100 parts, the 2015 Land Rover Defender D90 Body Set features a full detailed interior. Fold-down rear seats, gear shifter, handbrake and detailed dash. It’s all here to bring your build to next level
The crisp lines and subtle details are all captured. Functional light parts are included as well as colored lenses for all signal lights. All lamps can be illuminated with an optional RC4WD LED light kit.
What’s Included:

• 1x RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set

This is a kit that requires building time (appro. 2-3 hours) and electronics
Required to Complete:
Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Blue Thread Lock
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Body Kit

• Modeling / Craft Knife
• Long Nose Pliers
• Side Cutters
• Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy
• Hex Drivers (1.5mm, 2mm)
• Cross Phillips Screwdriver (Small)

Electronics

• Motor (35t45t or 55t)
• Outcry III Waterproof ESC (Z-E0113), or Outcry Extreme Speed Controller ESC w/ Program Card (Z-E0118)
• Radio and Receiver (2 channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• Twister High Torque Metal Gear Digital Servo (Z-E0035), or Twister Ultimate High Performance Waterproof Servo (Z-E0063)
• Battery (Consult your “ESC” manual) Z-E0090 or 2 cell Lipo battery
• Charger (Consult your battery guide) Chargers

Replacements Parts:

• (Z-S0794)
• Gelande 2 Rear 4 Link Mount (Z-S0795)
• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• RC4WD Plastic Punisher Shaft V2(95mm – 110mm / 3.74″ – 4.33″) 5mm Hole (Z-S2019)
• M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
• M3 Short Bent Plastic Rod End (20x) (Z-S0402)
• M3 Mini Plastic Rod End (20x) (Z-S0398)
• M3 Offset Short Plastic Rod End (20x) (Z-S0401)
• 14t 32p Hardened Steel Pinion Gear (Z-S0430)
• Yota Front Steel Axle Shaft (Z-S0060)
• Yota Steel Straight Axle Shaft (Rear) (Z-S0061)
• Gelande 2 Chassis Set (Z-C0040)
• Battery Plate for Gelande 2 (Z-S0792)
• Servo Mounts for Gelande 2 Chassis (Z-S0791)
• Fuel Cell Radio Box (Z-S0592)
• Hammer Transfer Case (1.47/1) (Z-U0024)
• BigDog 1/10 Tri Axle Widebody Scale Boat Trailer (Z-H0016)
• Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
• R3 Scale Single Speed Transmission (Z-U0028)
• RC4WD 12mm Axle Wheel Hex Set (Z-S0238)
• Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
• Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
• Gelande 2 Front Replacement Bumper (Z-S0800)
• Gelande 2 Rear Replacement Bumper (Z-S0801)
• R3 Single Speed Transmission Mounts (Z-S0802)
• Metal Drive Coupling for Gelande 2 (Z-S0803)
• 73mm (2.87″) Aluminum Link for Gelande 2 (Z-S0805)
• 59mm (2.32″) Aluminum Link for Gelande 2 (Z-S0807)
• 65.3mm (2.57″) Aluminum Link for Gelande 2 (Z-S0817)
• 70mm (2.75″) Aluminum Link for Gelande 2 (Z-S0819)
• Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
• 5 Lug Wagon 1.9″ Steel Stamped Beadlock Wheels (Black) (Z-W0129)
• Dirt Grabber 1.9″ All Terrain Tires (Z-T0005)
• Heavy Duty Nylon Strap Lock (5) (Z-S0552)
• Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
• 1mm Black Spacer with M3 Hole (10) (Z-S0809)
• 2mm Black Spacer with M3 Hole (10) (Z-S0600)
• 3mm Black Spacer with M3 Hole (10) (Z-S0806)
• 5mm Black Spacer with M3 Hole (10) (Z-S0821)

Replacement Hardware:

• Steel Button Head Cap Screws M3 x 6mm (10) (Z-S0651)
• Steel Button Head Cap Screws M3 x 8mm (10) (Z-S0652)
• Steel Button Head Cap Screws M3 x 10mm (10) (Z-S0653)
• Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
• Steel Button Head Cap Screws M3 x 14mm (10) (Z-S0655)
• Steel Button Head Cap Screws M3 x 16mm (10) (Z-S0656)
• Steel Flat Head Socket Cap Screw M3 x 8mm (10) (Z-S0649)
• Steel Flat Head Cap Screws M3 x 10mm (10) (Z-S0860)
• Steel Flat Head Cap Screws M3 x 14mm (10) (Z-S0746)
• Gelande II Electronics Deck (Z-S0793)
• Nylock Nuts M3 (Black) (Z-S0629)
• M3 x 15mm Set Screw (10) (Z-S0650)
• M3 X 10mm Set Screw (10) (Z-S0308)
• M3 Driveshaft Screw Pin (5) (Z-S0804)
• Steel Socket Head Cap Screws M2 x 10mm (10) (Z-S0849)
• Steel Socket Head Cap Screws M2.5 x 6mm (10) (Z-S0855)
• Button Head Self Tapping Screws M2.5 x 8mm (Black) (Z-S1572)
• M4 Flanged Lock Nut (Black) (Z-S0620)

Upgraded Front / Rear Shock:

• RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
• RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
• RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
• RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
• RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
• RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
• RC4WD Bilstein SZ Series 90mm Scale Shock Absorbers (Z-D0075)
• RC4WD Rancho RS9000 XL Shock Absorbers 90mm (Z-D0078)
• RC4WD Rancho RS9000 XL Shock Absorbers 100mm (Z-D0079)

Optional Parts:

• RC4WD Snorkel for Gelande II D90/D110 (Z-S0247)
• Inner Fender Set for Gelande II D90/D110 Body (Z-S1194)
• Gelande II D90/D110 Window Protection Roll Cage (Z-S0958)
• RC4WD ARB 1/10 Roof Rack with Window Guard for Gelande II D90 (Z-X0009)
• LED Basic Lighting System For Gelande II D90/D110 Body Set (Z-E0062)
• Land Rover D90/D110 – Heritage Grill (Z-S1875)
• Land Rover 1/10 D90/D110 Metal Grill (Z-S1887)
• RC4WD Rancho Adjustable Steering Stabilizer (70-100mm) (Z-S1949)
• Land Rover Mud Flaps for Gelande II D90/D110 (Z-S1888)
• D90/110 Aluminum Hood and Side Vents (Z-S1656)
• RC4WD Rancho Diff Cover for Yota II Axle (Z-S1924)
• Big Boss Fender Flare Set for D90/D110 (Z-S1741)
• Rear Ladder for Gelande II (D90/D110) (VVV-C0246)

Spec

• Brand: RC4WD
• Part No: Z-K0064
• Barcode: 639302607763
• Scale: 1:10
• Build Level: Assembled (RTR)
• Power Source: Electric – Brushed
• Surface Type: Off Road
• Vehicle Type: Rock Crawler
