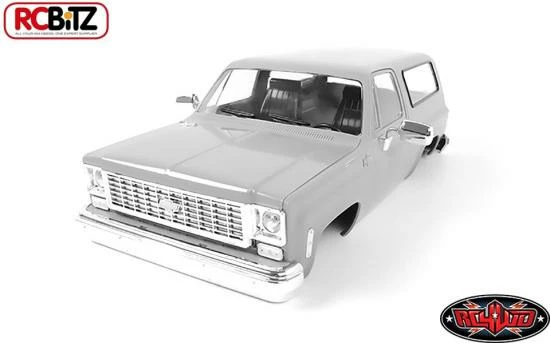

RC4WD Chevrolet Blazer Hard Body Complete Set

Specifications:

• Injection Molded Plastic
• Gray Colored Main Body
• Chrome Plated Parts
• Black Colored Interior Parts
• Hard Plastic
• Requires Assembly
• Clear Molded Window
• Dash with Steering Wheel
• Decal Sheet for Dash
• Metal Blazer and Chevrolet Emblems

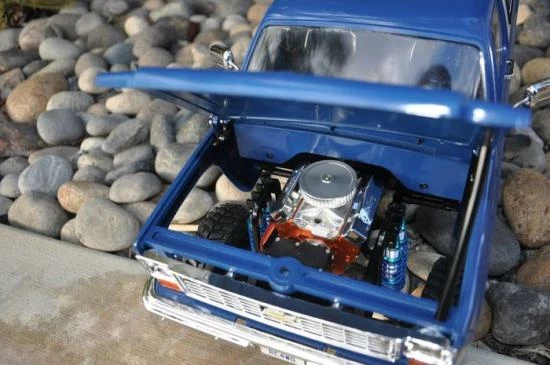

• Opening Hood with Metal Hinges
• Magnets to Keep Hood Closed
• Opening Rear Window and Tailgate
• Full High Detailed Interior
• Removable Top for Open Air Feel
• LED Lighting Compatible
• Amazing Details

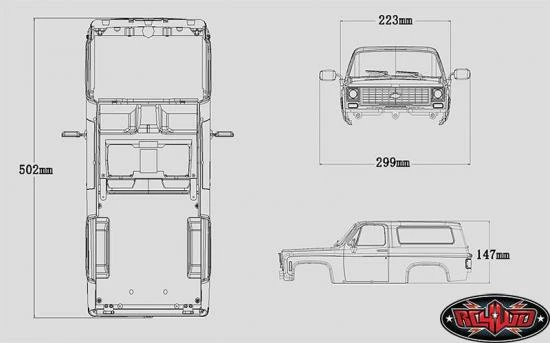

• Wheelbase: 11.3in / 287mm
• Width of Body: 8.78in / 223mm
• Width with Mirrors: 11.7in / 299mm
• Total Length: 19.8in / 502mm
• Total Weight: 42.33oz / 1200g

 Click here to learn How to Adapt Tough Armor Winch Bumper to the RC4WD Chevy Blazer Body Set

What’s Included:

• 1x RC4WD Chevrolet Blazer Hard Body Complete Set

Required to Complete:

• Modeling / Craft Knife
• Long Nose Pliers
• Plastic Cement / Glue (non-whitening CA glue)
• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Cross Phillips Screwdrivers (small)

Items of Interest: (not required for completion)

• Paint for body
• Paint for Body lenses (V-TAM81526, V-TAM81527)

Manuals

• Click here to download.

Optional Parts:

• RC4WD Raceline Wheels Steering Wheel Set for Mojave/Blazer/Cruiser (Z-S1792)
• Tough Armor Front Winch Bumper for Chevy Blazer / TF2 (Z-X0032)
• RC4WD V8 Engine Cover with Metal Intake Set for R3 Transmission (Z-S1749)
• RC4WD Push Bar for RC4WD Chevy K5 Front Bumper (Z-X0036)
• RC4WD Chevrolet Blazer Chrome Front Grille w/Optional Inserts (Z-B0124)
• Tough Armor Tube Roll Bar w/Rear Tire Mount for Chevy Blazer (Z-S1872)

Replacement Parts:

• RC4WD Chevrolet Blazer Main Body (Z-B0116)
• RC4WD Chevrolet Blazer Topper (Z-B0118)
• RC4WD Chevrolet Blazer Chrome Grill and Bumper Parts Tree (Z-B0094)
• RC4WD Chevrolet Blazer Clear Lenses Parts Tree (Z-B0096)
• RC4WD Chevrolet Blazer Hood, and Tailgate Parts Tree (Z-B0098)
• RC4WD Chevrolet Blazer Seats, Steering Column Parts Tree (Z-B0100)
• RC4WD Chevrolet Blazer Interior Panels Parts Tree (Z-B0102)
• RC4WD Chevrolet Blazer Chrome Handles and LED Holder Parts Tree (Z-B0104)
• RC4WD Chevrolet Blazer Chrome Mirror and Rear Taillight Parts Assembly (Z-B0106)
• RC4WD Chevrolet Blazer Accessory Parts Tree (Z-B0108)
• RC4WD Chevrolet Blazer Topper Clear Window Parts Tree (Z-B0110)
• RC4WD Chevrolet Blazer Body Mounting Parts Tree (Z-B0112)
• RC4WD Chevrolet Blazer Main Cab Clear Window Parts Tree (Z-B0114)
• RC4WD Chevrolet Blazer Metal Emblem Set (Z-S1560)
• RC4WD Chevrolet Blazer Functional Hood and Tailgate Hardware (Z-S1564)

Replacements Hardware:

• Steel Button Head Cap Screws M3 x 16mm (10) (Z-S0656)
• Steel Button Head Cap Screws M3 x 14mm (10) (Z-S0655)
• Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)
• Steel Button Head Cap Screws M3 x 10mm (10) (Z-S0653)
• Steel Button Head Cap Screws M2 x 6mm (10) (Z-S0933)
• Socket Head Cap Screws M1.6 x 6mm (10) (Z-S0752)
• Steel Socket Head Cap Screw M1.6 X 6mm (10) (Z-S1236)
• RC4WD Magnet and Metal Mounts. (Z-S1562)
• Button Head Self Tapping Screws M2 X 8mm (Sliver) (Z-S1580)
• Socket Head Self Tapping Screws M2 X 6mm (Black) (Z-S1584)
• Socket Head Self Tapping Screws M2 X 5mm (Black) (Z-S1582)
• Flat Head Tapping Screw 1.6 X 6mm (Sliver) (Z-S1586)
• Button Head Self Tapping Screws M2.5 X 6mm (Black) (Z-S1570)
• Button Head Self Tapping Screws M2.5 X 8mm (Black) (Z-S1572)
• Button Head Self Tapping Screws M3 X 6mm (Black) (Z-S1574)
• Button Head Self Tapping Screws M3 X 8mm (Black) (Z-S1576)
• Button Head Self Tapping Screws M3 X 10mm (Black) (Z-S1578)
• Flat Head Self Tapping Screws M3 X 10mm (Black) (Z-S1568)
• Flat Head Self Tapping Screws M1.4 X 8mm (Sliver) (Z-S1566)

Upgrades:

• Trail Finder 2 Plastic Body Posts (Z-B0029)
• Scale Plastic Driver Figure (Z-S0190)
• RC4WD 1/10 4 Wheel Drive Emblem Set (Z-S1130)
• RC4WD 1/10 V6 Emblem Set (Z-S1131)
• RC4WD 1/10 Turbo Diesel Emblem Set (Z-S1132)
• RC4WD 1/10 V8 Emblem Set (Z-S1133)
• RC4WD 1/10 5.0 Emblem Set (Z-S1134)
• RC4WD 1/10 RS Emblem Set (Z-S1135)
• RC4WD 1/10 454 Emblem Set (Z-S1136)
• RC4WD 1/10 SS Emblem Set (Z-S1137)
• RC4WD 1/10 Super Charged Emblem Set (Z-S1138)
• Big Boy Heavy Duty Aluminum Ladder (Z-X0011)
• LED Light Set for Blazer Body Set (Z-E0084)
• Tough Armor Roll Cage For Chevy Blazer (Z-S1708)
• RC4WD Aluminum Front Bumper for the Chevy Blazer Body (Z-S1731)
• RC4WD Tough Armor Rear Bumper for Chevy Blazer (Z-S1744)
• RC4WD Chevrolet Blazer Decal Sheet Set for Chevy Blazer Body (Z-B0123)
• Roll Bar Rack for RC4WD Chevy Blazer Body (Black) (VVV-C0353)
• Roll Bar Rack w/Spare Mount for RC4WD Chevy Blazer Body (Black) (VVV-C0355)
• Roof Rack, Rollbar, Light Bar Combo for RC4WD Chevy Blazer Body (Black) (VVV-C0357)
• Roll Bar Rack w/Spare Mount for RC4WD Chevy Blazer Body (Red) (VVV-C0356)

Notes:

• Fits RC4WD Trail Finder 2 Truck Kit (Z-K0054)
• This product does require assembly
• Instructions are included
• Painting the body is needed for your color preference
• No paint is included

Press Information:

• Download Press Release Here

Spec

• Brand: RC4WD
• Part No: Z-B0092
• Barcode: 639302583821
• Wheelbase: 290mm (11.4 Inch)
• Painted: Clear/Unpainted
