Black 1.9″ Universal Beadlock Wheel (D1)
The Universal Beadlock wheels allow you to customize your wheels looks. Purchase your wheels, beadlock rings, and hardware to allow a a multitude of combinations.
Specifications:

• CNC Machined
• Billet Aluminum
• Fits Standard 12mm Hex
• Use Scale Hex Bolts for Realistic Look
• Wheel Size: 1.9″
• OD: 2.13in / 54.3mm
• Width: 0.81in / 21mm
• Center Hole OD: 0.16in / 4.1mm
• Negative Offset: 0.35in / 9mm
• Each Weight: 2.08oz / 59g

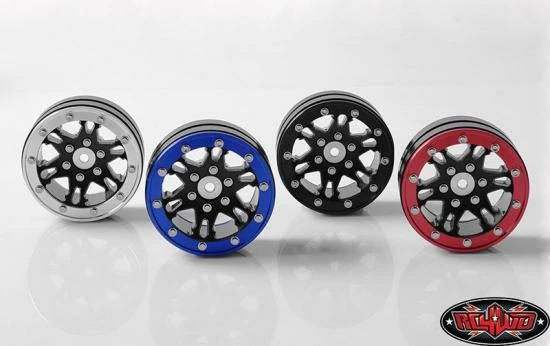

Shown installed with Black Rings (Z-S1245), Silver Rings (Z-S1247), Red Rings, and Blue Rings, with RC4WD Miniature Scale Hex Bolts (M2.5 x 6mm) (Silver) (Z-S0663) for example (Not Included)

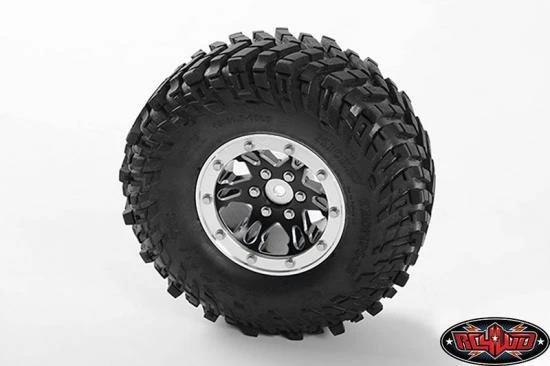

Shown installed with RC4WD Mickey Thompson 1.9″ Baja Claw 4.19″ Tires (Z-T0060), Silver 1.9 Universal Beadlock Rings (Z-S1247) and RC4WD Miniature Scale Hex Bolts (M2.5 x 6mm) (Silver) (Z-S0663) for example (Not Included)
What’s Included:

• 2x Black 1.9″ Universal Beadlock Wheel (D1)
• 1x Miniature Scale Hex Bolt Tool for M2.5 & M3 Scale Bolts (2.5mm Hex) (Z-S0635)

Required Parts:
Beadlock Rings (Click Here)

• Black 1.9 Universal Beadlock Rings (Z-S1245)
• Silver 1.9 Universal Beadlock Rings (Z-S1247)

Hardware (Click Here)

• RC4WD Miniature Scale Hex Bolts (M2.5 x 6mm) (Silver) (Z-S0663)

Optional Parts:

• Silver 1.9″ Universal Beadlock Wheel (D1) (Z-W0175)
• Black 1.9″ Universal Beadlock Wheel (D2) (Z-W0181)
• Silver 1.9″ Universal Beadlock Wheel (D2) (Z-W0179)
• Steel Wheel Hex Hub with Brake Rotor (Z-S0530)
• 1.9″/2.2″ 6 Lug Steel Wheel Hex Hub +3 Offset (Z-S0774)
• 1.9″/2.2″ 6 Lug Steel Wheel Hex Hub +9 Offset (Z-S0780)
• 1.9″/2.2″ 6 Lug Steel Wheel Hex Hub +6 Offset (Z-S0779)
• RC4WD Miniature Scale Hex Bolts (M2.5 x 6mm) (Black) (Z-S0008)

Replacement Hardware:

• 12x M2.5 x 8mm Hex Bolts (Silver) (Z-S0418)

Notes:

• This wheel fits the Rock Beast 1.9″ Scale RC Tires
• This is for 2 wheels only. For a complete truck you will need 2x of this product.
• Each wheel requires 2 rings for proper assembly. (Click Here)
• Each wheel requires 20x M2.5 x 6mm Screws. 10x per ring. (Click Here)
• Wheels, Rings and Hardware are all sold individually. Please be sure to check each product page to make sure you get the correct amount needed to complete your assembly.
• Due to many different methods to design Tires and Wheels, we have no control over other manufacturers products. So we can only tell you that RC4WD Tires and Wheels work together. In some cases our Wheels and Tires will work with other brand Wheels and Tires, but we can not guarantee the outcome.

Click here to download the RC4WD full wheel comparison list.

Spec

• Brand: RC4WD
• Part No: Z-W0177
• Barcode: 639302582114
• Mounting Diameter: 1.9 Inch
• Fitment: 12mm Hex
• Pack Quantity: 2
