RC4WD 3 Link Kit For Trail Finder 2 Front Axle W/Panhard Setup

3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup
This is the front 3 Link Mount CAD for the Trail Finder 2. This can be used to replace the stock front leaf spring setup with a more advanced 3 link style setup. Includes everything you need for the swap.
Specifications:

• CNC Machined Parts
• Plastic Rod ends
• All hardware included for conversion
• Instructions included

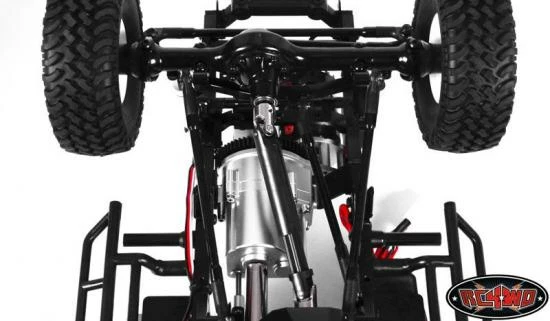

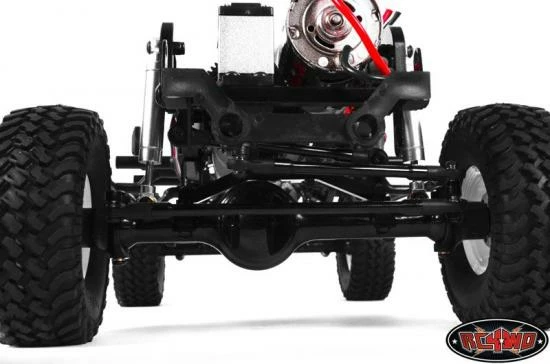

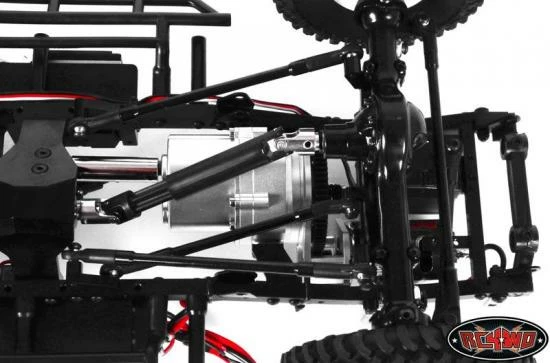

Shown installed with RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049) (Not Included)

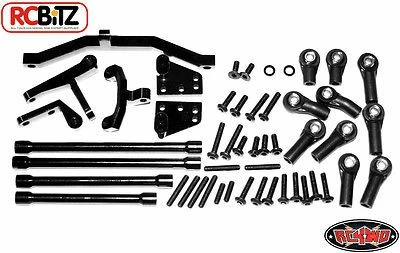

What’s Included:

• 1x Front Axle Truss
• 3x TF2 Chassis Panhard mount
• 2x TF2 Chassis link mounts
• 2x 81mm Link (Black)
• 1x 67mm Link (Black)
• 1x 60mm Link (Black)
• 2x M3 x 8mm FHCS (Black)
• 4x M3 x 8mm BHSC (Black)
• 2x M3 x 10mm BHSC (Black)
• 8x M3 x 12mm BHSC (Black)
• 2x M3 x 14mm BHSC (Black)
• 2x M3 x 16mm BHSC (Black)
• 6x M3 x 15mm SSS (Z-S0650)
• 4x M3 x 10mm SSS (Z-S0308)
• 2x TF2 2mm spacer (Z-S0600)
• 2x M3 Mini plastic rod end (Z-S0398)
• 2x M3 Short plastic rod end (Z-S0402)
• 6x M3 Medium Straight plastic rod end (Z-S0399)
• 1x Instruction Manual

Optional Parts:

• RC4WD 81mm (3.19″) Internally Threaded Titanium Link (Z-S1331)
• RC4WD 60mm (2.36″) Internally Threaded Titanium Link (Z-S1319)
• RC4WD 67mm (2.64″) Internally Threaded Titanium Link (Z-S1333)
• M3 Bent Short Aluminum Rod Ends (Silver) (10) (Z-S1653)
• M3 Bent Short Aluminum Rod Ends (Red) (10) (Z-S1655)
• M3 Bent Short Aluminum Rod Ends (Blue) (10) (Z-S1657)
• M3 Medium Straight Aluminum Rod Ends (Silver) (10) (Z-S1638)
• M3 Medium Straight Aluminum Rod Ends (Red) (10) (Z-S1640)
• M3 Medium Straight Aluminum Rod Ends (Blue) (10) (Z-S1642)
• M3 Medium Straight Aluminum Rod Ends (Black) (10) (Z-S1644)
• M3 Short Straight Aluminum Rod Ends (Silver) (10) (Z-S1630)
• M3 Short Straight Aluminum Rod Ends (Blue) (10) (Z-S1634)
• M3 Short Straight Aluminum Rod Ends (Black) (10) (Z-S1636)

Downloads:

Instruction Sheet
