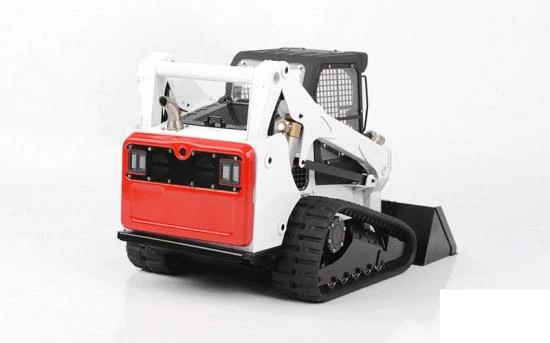

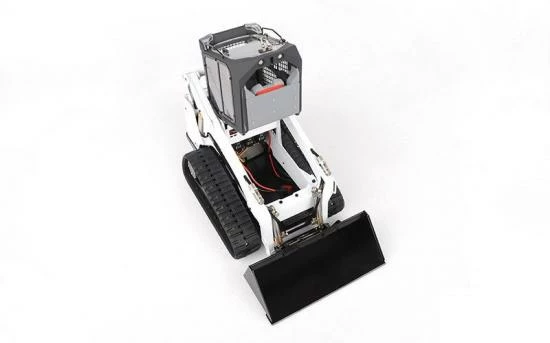

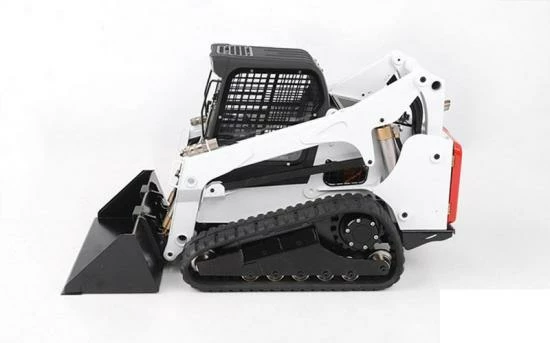

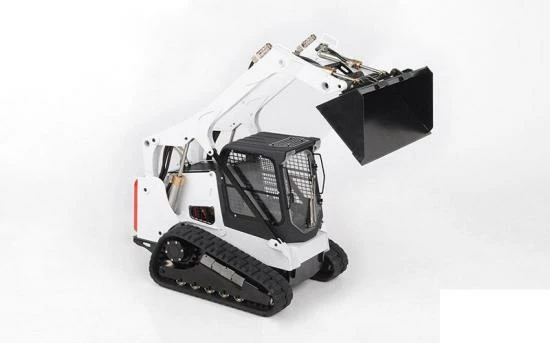

1/14 Scale R350 Compact Track Loader RTR
Payment Information: Due to the value of this product, the only forms of payment that will be accepted are Affirm and Bank Transfer. Please do not choose credit card or Pay Pal or Credit Card when checking out as we will cancel the order. Feel free to email us at [email protected] if you have any questions.
Important Note:Due to the size and weight of this product, this product has to be shipped in its own container. It will be shipped only by Expedited Shipping Service (5-8 days), this requires an extra shipping surcharge of $170 to ship anywhere in the US and all international countries due to the size and weight.
Specifications:

• CNC Machined Metal Parts
• Molded Steel Bucket
• 6 Channel 2.4Ghz Radio
• Optimized Steel Hydraulic System

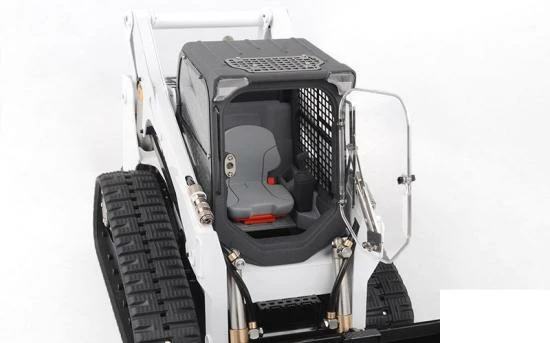

• Scale Operator Station (can fit a driving figure)
• Crawler Travel System
• Heavy Duty Hoses
• Powder-coated in White, Grey and Red
• Brushless System (Hydraulic)
• Scale Interior
• Transmission Ratio: 1:109
• Battery Size:90 x 45 x 20mm / 3.54 x 1.77 x 0.78in
• Bucket Capacity: 155 x 65 x 42mm / 6.10 x 2.55 x1.65in
• Maximum Bucket Force: 1.5kg / 6.83lbs
• Scale: 1 : 14
• Length: 284mm / 11.1in
• Width: 156mm / 6.14in
• Height: 157mm / 6.18in
• Maximum Bucket Height: 235mm / 9.25in
• Maximum Bucket up and down Angle: 11 to 103 degrees
• Weight: 3.1kg / 6.8lbs
• Operating Oil Pressure: 3Mpa
• Manufactured by JDCustoms
• 30 Days Limited Warranty

What’s Include:

• 1x 1/14 Scale R350 Compact Track Loader RTR

Required Parts:

• 2S Lipo Battery
• 4x AA Batteries for Radio (Z-S1718)
• Gens ace 5000mAh 7.4V 50C 2S1P Short-Size Lipo Battery Pack with T Style Plug

Optional Parts:

• 1/14 Grapple for R350 Compact Track Loader (VVV-S0242)
• 1/14 Pallet Forks for R350 Compact Track Loader (VVV-S0247)

Instruction Manual:

• Click here to download

Notes:

• While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
• ESC Supports bullet Connector
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

Spec

• Brand: RC4WD
• Part No: VV-JD00052
• Barcode: 639302611623
• Scale: 1:14
• Build Level: Assembled (RTR)
• Vehicle Type: Construction Site
• Power Source: Electric – Brushed
• Surface Type: Off Road
