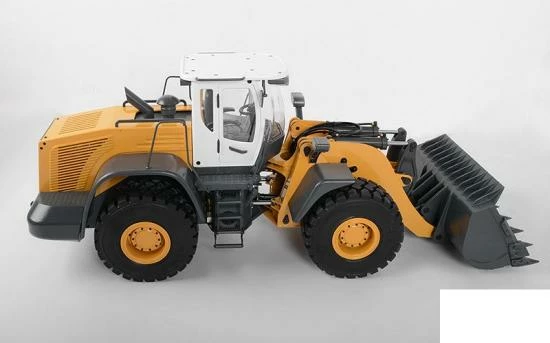

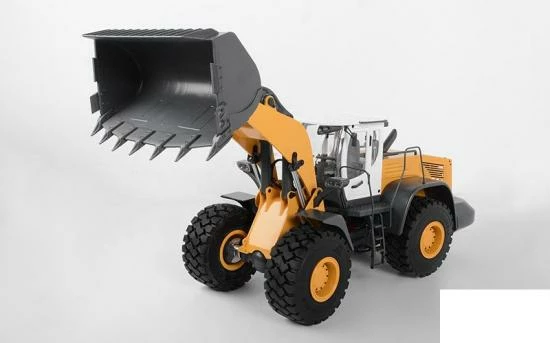

1/14 Scale Earth Mover 870K Hydraulic Wheel Loader (Yellow and White) The Earth Mover 870K is the most powerful wheel loader available today, created for the customer who requires reliability and high production in bulk earth moving or construction projects. CNC machined metal parts, fully assembled, ready to work! Massive power through 350kV brushless system.
This product is hand assembled. The vendor makes every effort to assemble with no imperfections, but due to the nature of this product and the amount of effort and work that goes into each one, it could have a few small blemishes.

Important Note: This product is for experienced R/C users. Not recommended if you just started with R/C.

  Specifications:

• CNC Machined Metal parts
• Molded Steel bucket
• 6 channel 2.4Ghz radio
• Optimized Steel Hydraulic system
• Scale operator station (can fit a driving figure)
• Massive 29.5-25L-5 Tires
• Reliable hydraulic valve and adjustable pump
• Heavy Duty Hoses (OD 4.5mm Nylon, ID 2.5mm)
• Powder coated in yellow
• Brushless system (hydraulic)
• 40A brushless ESC with BEC
• Kv brushless monster torque Motor
• Realistic non functional disk break
• Scale ABC plastic interior
• Wheel with planetary gearbox build-in
• 2 speed full metal transmission (1:16 and 1:4 gear ratio)
• Realistic full metal Axles
• Run time is: 30 minutes (6500mAh Battery)
• Steel Machined oil pump (45mm X 30mm X 15.5mm)
• Bucket capacity:
• Maximum bucket force: 70kg / 154pounds
• Scale: 1 : 14
• Length: 741mm / 29inch
• Width: 276mm / 11inch
• Height: 276mm / 11inch
• Maximum bucket Height: 461mm / 18inch
• Maximum bucket up and down angle: 46 to 64 degrees
• Maximum bucket left and right angle: 38 degrees
• Wheel base: 284mm
• Dead Weight: 20.5kg / 45lbs
• Total mass load: 32kg / 70lbs
• Operating oil pressure: 20Bar, 290psi
• Manufactured by JDCustoms
• 30 Days Limited Warranty

Courtesy photo provided by RC Sparks

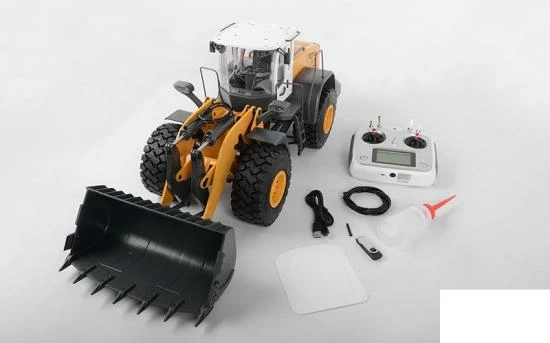

  What’s Included:

• 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader (Yellow and White)

  Required Parts:

• Lipo Charger
• 3S 6500mAh 11.1v 20c Lipo battery (Max size: 2.87in X 3.15in X 5.2in) (Z-E0038)

  Replacement Parts:

• Hydraulic Connector M5 x 4mm Tube (90deg) (VVV-S0069)
• M3 x M5 Steel Hydraulic Reducer Bushing (VVV-S0072)
• Pressure Relief Valve for Earth Digger (VVV-S0041)
• Mini Hydraulic Oil Pump with Brushless 40A Motor/ESC (VVV-S0090)
• 2mm Heavy Duty Hydraulic Tubing (VVV-S0073)
• Mega Truck Universal Shaft “Ver 2” (92mm to 130mm) (VVV-S0054)
• Earth Mover Steel Straight Axle Shafts (Z-S1579)
• Earth Mover 2 Speed Transmission (VVV-S0139)
• Complete Front Axle Assembly for Earth Mover (VVV-S0156)
• Brake Drum for Earth Mover (VVV-S0138)
• Hydraulic Cylinder (105.8mm) (VVV-S0141)
• Hydraulic Cylinder (91.5mm) (VVV-S0143)
• Front Axle Sub-Assembly for Earth Mover (VVV-S0152)
• Rear Axle Dust Cover for Earth Mover (VVV-S0148)
• Rear Axle Sub-Assembly for Earth Mover (VVV-S0125)
• Wheel Assembly for Earth Mover (VVV-S0150)
• Earth Mover 60A Brushless ESC (VVV-S0133)
• Heavy Equipment Mini Valve Servos (VVV-S0162)
• 1/14 Loader LED Lighting System (VVV-S0161)

  Optional Parts:

• Semi Truck Sound Unit (VVV-S0074)
• Earth Mover 870K Warning Light System (VVV-S0189)
• Scale Heavy Duty Flat Bed Transporter
• High Intensity LED
• Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

Optional Colors:

• 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader (White) (VV-JD00032)

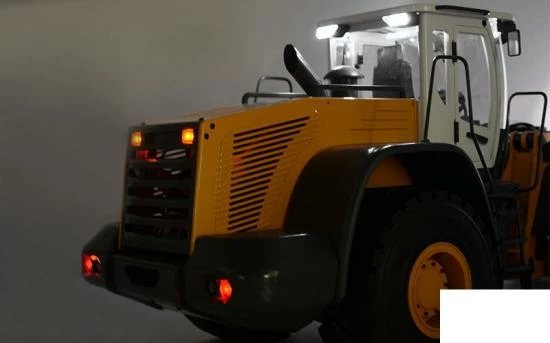

  Lighting System:

• 1/14 Loader LED Lighting System (VVV-S0161) Included

    Sound System:

• Not Included

  Instruction Manual:

• For Detailed Setup. Click Here

  Radio Instruction Manual:

• Click here to download.

  Notes:

• While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
• ESC Supports bullet Connector
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

  Warranty Information   This product is made for heavy duty usage. Since there is no plastic parts, its designed to last. But hydraulic pump, hoses and electronics system can break over time. Do not let the system overheat during usage. We will have all spare parts available for sell. Pump, hoses are electronics system is not covered under warranty, but we do guarantee fully functional at arrival. Each unit is full tested twice before we ship.   Each unit is professionally assembled, adjusted and tested. Do not adjust the oil pressure switch. Oil pressure will drop as you operate over time.   This Wheel Loader is shipped without oil. You will have to fill the tank your self (half tank), by using a funnel or tube (not included).

Spec

• Brand: RC4WD
• Part No: VV-JD00031
• Barcode: 639302597712
• Scale: 1:14
• Vehicle Type: Construction Site
• Power Source: Electric – Brushed
• Surface Type: Off Road
• Build Level: Part Assembled (ARTR)
