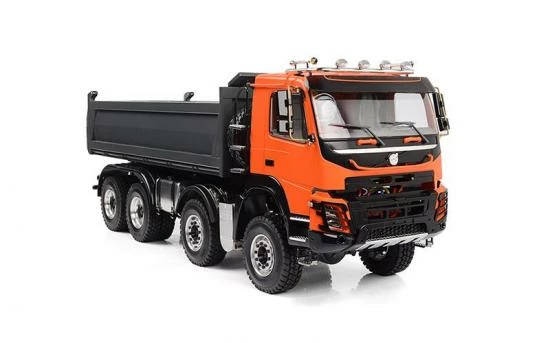

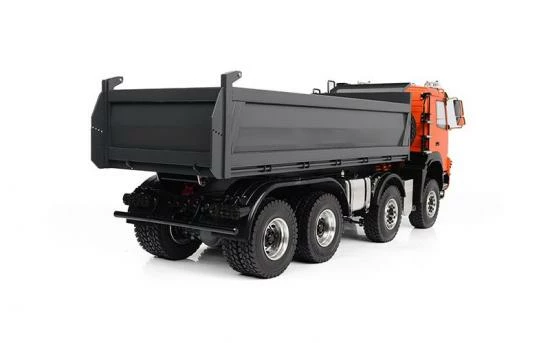

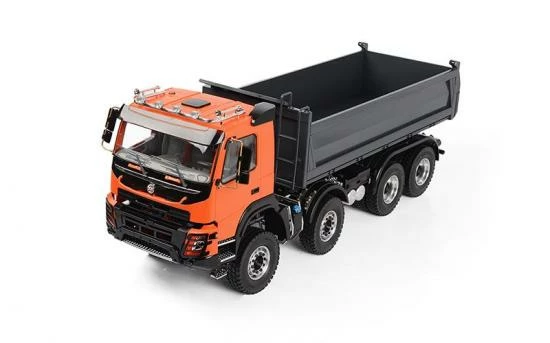

RC4WD 1/14 8×8 Armageddon Hydraulic Dump Truck (FMX) (Orange And Grey) RC4WD

SPECIAL ORDER – 1/14 8×8 Armageddon Hydraulic Dump Truck (FMX) (Orange and Grey)   The Armageddon is one of the most powerful R/C Hydraulic Dump Trucks available today. It is highly detailed and based the European style dump trucks. Engineered specifically for the tough demands of transporting gravel, sand, asphalt, snow, wood chips or rocks. Created for the customer who requires reliability and high production in bulk earth moving or construction projects. CNC machined metal parts, fully assembled, ready to work! A 300kv brushless motor delivers high torque which will help with towing and startup power.       Specifications:

• Hard Plastic European Style Front Cab
• Full Metal 2 Speed Transmission (Planetary Gears)
• Transfer Case (Billet Aluminum)
• Scale Fuel Tank (Billet Aluminum)

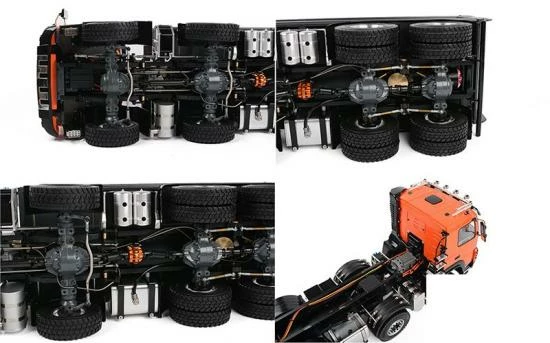

• Super Scaled Leaf Spring Suspension Setup
• Scale Rims (Billet Aluminum)
• Remote Lockable Rear Axle (Locking Differential)
• Full Metal Front and Rear Axle Housing
• Steel Scale Drive Shaft
• Realistic Front Cab Latch
• Retractable Steel Ladder
• Molded Functional Fuel Tank
• Automatic Trailer Gate (Do Not Attempt to Open by Hand)
• Rear Light Guard (Protects Against Rocks)
• Scale Light Buckets (Fits 3-5mm LED)
• Recommended Payload: 15kg / 33lbs
• Maximum Lift Power: 42kg / 92lbs
• Fully Painted
• Scale Wheel/Tire

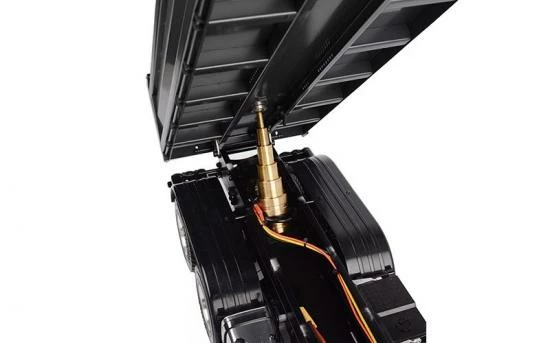

• Cylinder Maximum Thrust: 109kg / 231lbs
• Brushed Driven Motor
• 300KV Brushless Motor-Driven Micro Hydraulic Pump
• Length: 690mm / 27.1 inch
• Width: 186mm / 7.3 inch
• Height: 262mm / 10.3 inch
• Weight: 8.9kg / 19.6 lbs
• Axle Gear Ratio: 2.6 : 1
• Transfer Case Gear Ratio: 1 : 1
• Theoretical Load: 15kg / 33 lbs
• Load Total Mass: 24.5kg / 54 lbs
• First Gear 1:64, Second Gear 1:16 (Transmission)
• Basic 6 Channel 2.4Ghz Radio
• This Product Is Professionally Pre-assembled
• Manufactured by JDCustoms
• 30 Days Limited Warranty

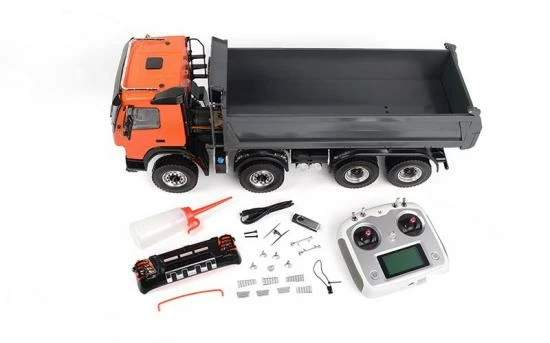

                                    What’s Included:

• 1x 1/14 8×8 Armageddon Hydraulic Dump Truck (FMX) (Orange and Grey)

  Optional Colors:

• 1/14 8×8 Armageddon Hydraulic Dump Truck (FMX) (VV-JD00017)
• 1/14 8×8 Armageddon Hydraulic Dump Truck (FMX) (Orange) (VV-JD00044)

  Replacement Parts:

• Mini Hydraulic Oil Pump with Brushless 40A Motor/ESC (VVV-S0090)
• King of the Road 1.7″ 1/14 Semi Truck Tires (VVV-S0061)
• Earth Digger 4200XL Excavator Brushed ESC (VVV-S0011)
• Hydraulic Connector M5 x 4mm Tube (90deg) (VVV-S0069)
• Armageddon Complete Painted Cab (FMX) (VVV-S0178)

  Required Parts:

• Gens ace 5000mAh 11.1V 50C 3S1P Short-Size Lipo Battery Pack with XT60 Plug
• 8x�AA Batteries for Radio (Z-S1718)
• Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

  Optional Parts:

• Twister High Torque Metal Gear Digital Servo (Z-E0035)
• Hauler Super Wide 1.7″ Commercial 1/14 Semi Truck Tires (Z-T0071)
• Long Haul 1.7″ Commercial 1/14 Semi Truck Tires (Z-T0026)
• LoRider 1.7″ Commercial 1/14 Semi Truck Tires (Z-T0066)
• Roady 1.7″ Commercial 1/14 Semi Truck Tires (Z-T0032)
• Roady Super Wide 1.7″ Commercial 1/14 Semi Truck Tires (Z-T0072)
• 1/14 Faux Fuel/Air Tank Assembly (VVV-S0175)

  Instruction Manual:

• Click here to download.

  Notes:

• When raising the dump bed, do not leave at upper-most position for more than 2 seconds, doing so may cause damage to the hydraulic system.
• Do not push/pull the truck by the tailgate, doing so may cause damage to the locking mechanism.
• Do not use more than 3S battery. (11.1 volt(s))
• Do not try to operate lift past its fully-extended height, doing so may cause damage to hydraulic system.
• Must turn on the transmitter before starting the ESC.
• ESC Supports XT60 Connector
• The ESC does not have lipo cut off.
• While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply thread lock to some of the hardware.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require threadlock.
• Do not over tighten screws, or you may strip the thread.
• This product is for experienced R/C users. Not recommended for beginners.
• The axle hubs can be removed, but may require additional force.
• Speaker included, but sounds unit sold separate. (VVV-S0074)

Add this below use thread lock when putting metal screws into metal parts:

• Use thread lock sparingly
