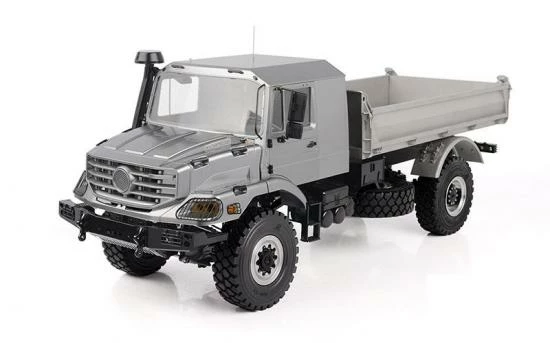

RC4WD 1/14 4X4 Overland Hydraulic RTR Truck W/Utility Bed RC4WD

SPECIAL ORDER – 1/14 4X4 Overland Hydraulic RTR Truck w/Utility Bed
Specifications:

• Hard Plastic European Style Front Cab
• Full Metal 2 Speed Transmission (Planetary Gears)
• Transfer Case (Billet Aluminum)
• Scale Fuel Tank (Billet Aluminum)
• Super Scaled Leaf Spring Suspension Setup
• Scale Rims (Billet Aluminum)
• Remote Lockable Front and Rear Axles (Locking Differential)
• Full Metal Front and Rear Axle Housing
• Steel Scale Drive Shaft
• Realistic Front Cab Latch
• LiPo Cutoff
• Molded Functional Fuel Tank
• Rear Light Guards
• Scale Light Buckets (Fits 3-5mm LED)
• Recommended Payload: 10kg / 22lbs
• Painted Body
• Scale Wheels and Tires
• Brushed Motor
• Maximum Lift Power: 42kg / 92lbs

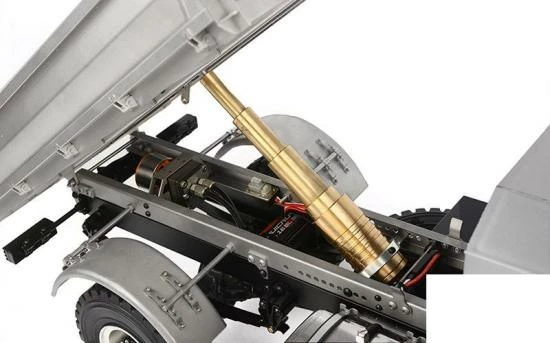

• 930KV Brushless Motor-Driven Micro Hydraulic Pump
• Spare Tire Included
• Automatic Trailer Gate (Do Not Attempt to Open by Hand)
• Length: 25.1in / 638mm
• Width: 9.05in / 230mm
• Height: 10.7in / 273mm (Including Antenna)
• Weight: 6.8kg / 14.9lbs
• Axle Gear Ratio: 2.6 : 1
• Maximum Load: 15kg / 33lbs
• First Gear 1:64, Second Gear 1:16 (Transmission)
• Basic 6 Channel 2.4Ghz Radio
• This Product Is Professionally Pre-assembled
• Manufactured by JDCustoms
• 30 Days Limited Warranty

    What’s Included:

• 1x 1/14 4X4 Overland Hydraulic RTR Truck w/Utility Bed

Required Parts:

• 5000mAh 11.1V 50C 3S1P LiPo Battery Pack with XT60 Plug (Battery size must be no bigger than 140mm in length, 45mm in width, and 25mm in height)
• Compatible Battery Charger
• 4x AA Batteries for Radio (Z-S1718)
• Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

Instruction Manual:

• Click here to download

Notes:

• When raising the dump bed, do not leave at upper-most position for more than 2 seconds, doing so may cause damage to the hydraulic system.
• Do not push/pull the truck by the tailgate, doing so may cause damage to the locking mechanism.
• Do not use more than 3S battery. (11.1 volt(s))
• Do not try to operate lift past its fully-extended height, doing so may cause damage to hydraulic system.
• Must turn on the transmitter before starting the ESC.
• ESC Supports XT60 Connector
• While some components may come assembled, it may be in your best interests to check the products to ensure all hardware are tight. In some “cases” you may want to apply threadlock to some of the hardware that were already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require threadlock.
• Use threadlock sparingly.
• Do not over tighten screws, or you may strip the thread.
• This product is for experienced R/C users. Not recommended for beginners.
• The axle hubs can be removed, but may require additional force.
