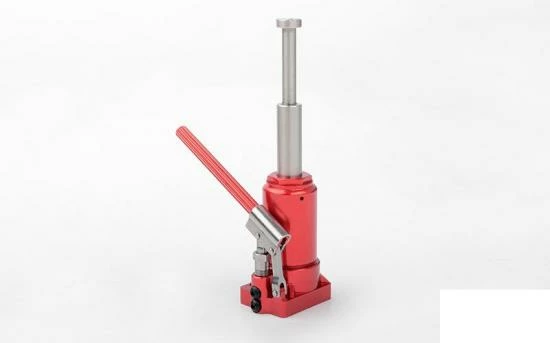

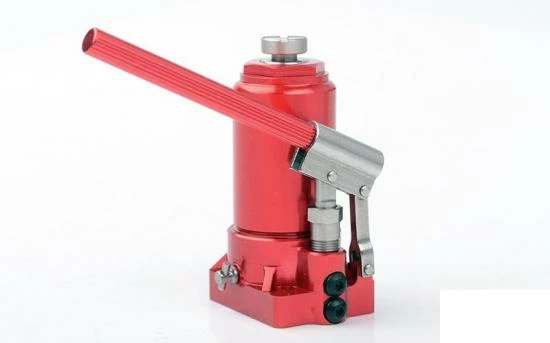

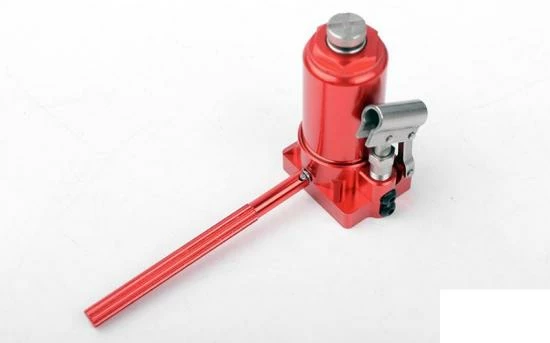

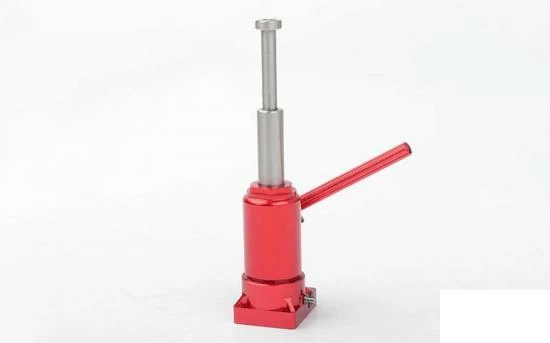

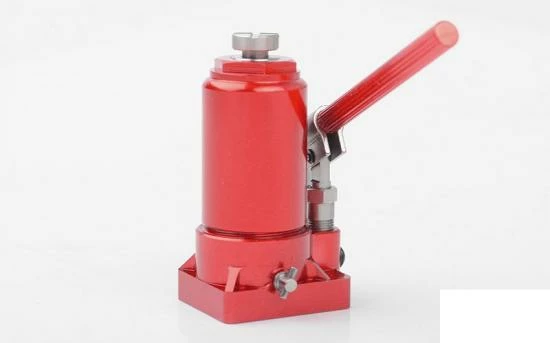

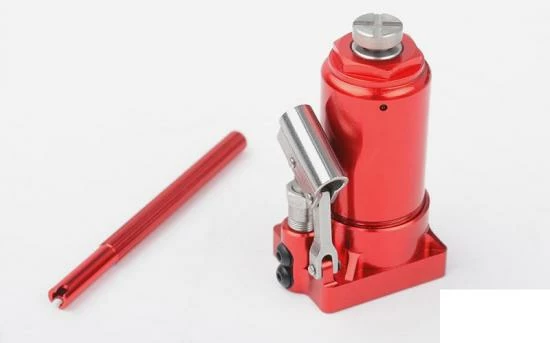

RC4WD 1/10 JDM Hydraulic Functional Bottle Jack RC4WD

1/10 JDM Hydraulic Functional Bottle Jack
Specifications:

• Billet Aluminum Base
• CNC Machined
• Red Anodized Finish
• Stainless Steel Piston Rod
• Lifting Range: 51mm-109mm / 2.00in-4.29in
• Capacity: 33Lb / 15Kg
• Base Plate Width: 0.88in / 22.4mm
• Base Plate Length: 1.16in / 29.5mm
• Handle Length: 1.86in / 47.3mm
• Handle OD: 0.19in / 4.9mm
• Weight: 2.24oz / 63.7g

What’s Included:

• 1x 1/10 JDM Hydraulic Functional Bottle Jack

Instruction Manual:

• Click here to download.

Notes:

• Vertical jacks can only be used vertically, not horizontally or upside down.
• When the jack shakes the hand lever and cannot let the piston rod hit the top, use a syringe to add hydraulic oil to the oil injection port.
• When placing the jack, please place it at the highest point of the lift. If the piston rod is in the retracted state, the jack cannot be placed horizontally or upside down. Otherwise, the hydraulic oil will flow out from the oil filling vent.
